DYC-JQ型电磁真空压差阀是机械真空泵安全阀，安装于机械真空泵的进气口，并与泵同步开启和关闭。当泵停止工作或电源突然中断时，阀门利用大气压力使阀板自动关闭，使真空系统保持真空并将大气充入泵腔内，从而避免泵油逆向流动而污染真空系统。适用介质为纯净空气和非腐蚀性气体。 |
|
| |
| ■ |

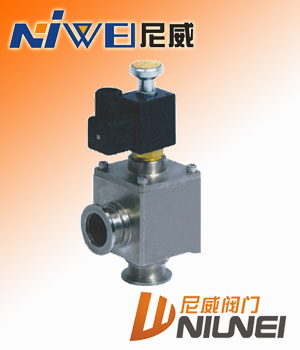

DYC-JQ电磁真空压差阀
Electro-vacuum Differential Pressure Valve
|
| |
| |
DYC-JQ electro-vacuum differential Pressure valve is a safely valve for mechanical vacuum pump. It is mounted at the intake nozzle of mechanical vacuum pump, synchronously opened and closed with the pump. In case that pump stops working or power supply is suddenly broken off, valve disc will be closed automatically under atmospheric pressure, to keep the vacuum system vacuum and the air charged into pump cavity, thus to prevent pump oil from reverse flow that can pollute the vacuum system. Applicable medium can be pure air or noncorrosive gases. |
|
| |
| ■ |
DYC-JQ电磁真空压差阀主要技术性能
Main Technical Performance |
| |
| 适用范围：Applicability |
105～10-2Pa |
| 阀门漏率：Valve Leak Rate |
≤1.3×10-2Pa.L/S. |
| 适用温度：Applicable Temperature |
-30～+50℃ |
| 线围温升：Coil Temperature Rise |
≤65℃ |
| 开闭时间：Open-close Time |
≤3S |
| 电源电压：Mains Voltage |
220V/50Hz |
|
|
| |
| ■ |
DYC-JQ电磁真空压差阀主要零件材料
Materials of Main Parts |
| |
| |
|
阀体、阀盖、阀板：碳钢或铝合金
隔膜：丁腈橡胶加涤纶绸
Body, bonnet and disc: carbon steel or aluminium alloy
Diaphragm: NBR and terylene silk |
|
| |
| CONSTRUCTION FIGHTS (mm) |
| |
| ■ |
DYC-JQ电磁真空压差阀外形及连接尺寸(mm)
Overall and Connection Dimensions(mm) |
|
|
|
| ■ |
DYC-JQ电磁真空压差阀活套法兰连接(GB6070 图一) |
|
Model
型号
|
DN
|
Do
|
D
|
D2
|
n-φc
|
A
|
H
|
|
DYC-JQ50
|
50
|
90
|
110
|
55
|
4-φ9
|
70
|
203
|
|
DYC-JQ63
|
63
|
105
|
130
|
68
|
4-φ9
|
88
|
226
|
|
DYC-JQ80
|
80
|
125
|
145
|
85
|
8-φ9
|
98
|
260
|
|
DYC-JQ100
|
100
|
145
|
165
|
105
|
8-φ9
|
108
|
282
|
|
DYC-JQ160
|
160
|
200
|
225
|
165
|
8-φ12
|
158
|
350
|
|
| ■ |
DYC-JQ电磁真空压差阀快卸法兰连接(GB4982 图二) |
|
Model
型号
|
DN
|
D1
|
D
|
A
|
H
|
B
|
|
DYC-JQ16
|
16
|
17.2
|
30
|
40
|
160
|
55
|
|
DYC-JQ25
|
25
|
26.2
|
40
|
50
|
170
|
60
|
|
DYC-JQ32
|
32
|
34.2
|
55
|
58
|
179
|
60
|
|
DYC-JQ40
|
40
|
41.2
|
55
|
65
|
187
|
70
|
|
DYC-JQ50
|
50
|
52.2
|
75
|
70
|
203
|
85
|
|
| ■ |
DYC-JQ电磁真空压差阀方体螺纹连接(JB919 图三) |
|
Model
型号
|
DN
|
Do
|
D2
|
h
|
B
|
H
|
n-d
|
|
DYC-JQ16
|
16
|
42
|
22
|
28
|
48
|
148
|
4-M5
|
|
DYC-JQ25
|
25
|
55
|
29
|
35
|
58
|
155
|
4-M6
|
|
DYC-JQ32
|
32
|
64
|
36
|
40
|
68
|
160
|
4-M6
|
|
DYC-JQ40
|
40
|
70
|
44
|
44
|
80
|
166
|
4-M6
|
|
DYC-JQ50
|
50
|
90
|
55
|
56
|
94
|
189
|
4-M8
|
|
DYC-JQ65
|
65
|
105
|
70
|
65
|
115
|
205
|
4-M8
|
|
DYC-JQ80
|
80
|
125
|
85
|
75
|
140
|
250
|
4-M8
|
|
