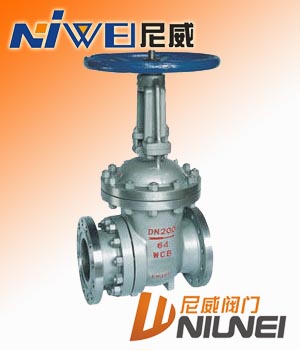

PZ41H排渣闸阀

 排渣闸阀-主要尺寸 Main dimensions

型号 Type	公称通径 DN/mm Nominal diameter	主要尺寸/mm Main dimensions
		L	D	D1	D2	b	Z-ød	H
PZ41H-10C PL41H-10C PZ41H-16C PL41H-16C NPZ41H-10C NPZ41H-16C 电动排渣阀 尺寸同上， 高度重量加电动头。 Dimensions of motor-driven valve are the same as the above with extra height	50	250	165	125	102	20	4-ø18	335
	80	280	200	150	133	22	8-ø18	510
	100	300	220	180	150	24	8-ø18	685
	150	350	285	240	212	28	8-ø22	790
	200	400	340	295	268	30	12-ø22	885
	250	450	405	355	320	32	12-ø26	1015
	300	500	460	41O	370	34	12-ø26	1190
	350	550	520	470	430	38	16-ø26	1350
	400	600	580	525	482	40	16-ø30	1460
	500	700	715	650	585	46	20-ø33	1820
PZ41H-25 PZ941H-25 NPZ41H-25 NPZ941H-25 电动尺寸同上，高度、 重量外加电动装置。 Dimensions are the same as the above With extra height and Weight of the motor	50	250	165	125	102	20	4-ø18	335
	80	280	200	150	133	22	8-ø18	510
	100	300	235	190	158	24	8-ø22	685
	150	350	300	250	212	30	8-ø26	190
	200	400	360	31O	278	34	12-ø26	885
	250	450	425	370	335	36	12-ø30	1015
	300	500	485	430	390	40	16-ø30	1190
	350	550	555	490	450	44	16-ø33	1350
	400	600	620	550	505	48	16-ø36	1460
	450	650	670	600	555	50	20-ø36	1620
	500	700	730	660	615	52	20-ø36	1820
PL41H-25 PL941H-25 电动尺寸同上， 高度、重量 外加电动装置。 Dimensions are the Same as the above With extra height and Weight of the mortor	150	400	300	250	212	30	8-ø26	91O
	200	500	360	31O	278	34	12-ø26	1100
	250	550	425	370	335	36	12-ø30	1430
	300	650	485	430	390	40	16-ø30	1558
	350	700	555	490	450	44	16-ø33	1678
	400	750	620	550	505	48	16-ø36	1830
	450	850	670	600	555	50	20-ø36	1990
	500	900	730	660	615	52	20-ø36	2160



PZ41H排渣闸阀工作温度 Working temp	≤100℃
PZ41H排渣闸阀阀体材料 Body Material	碳钢WCB Carbon steel
PZ41H排渣闸阀适用介质 Applicable Media	灰渣水混合物，渣水比≥1:15，最大类径≤50mm Mixture of Water and ash residue With a ratio of residue：Water≥1：15 and max．s
